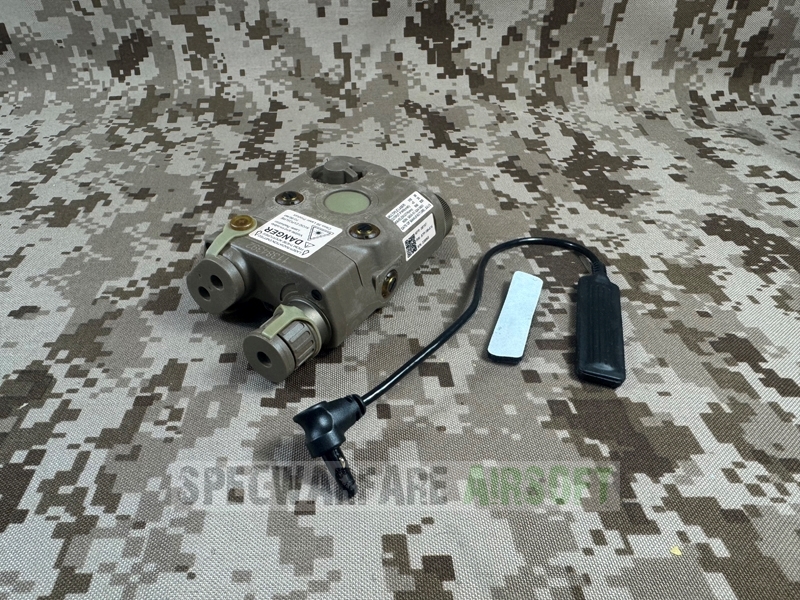

Get ready for nighttime operations with the Sotac PEQ-15 UHP IR Laser & Illuminator Device for precision accuracy. With an IR laser, IR illuminator, and visible red laser all co-aligned, you get the confidence you need in dynamic combat scenarios. Plus, the device is zeroable, giving you a mobile level of accuracy - even in darkness. The perfect choice for your nighttime operations.
Function Mode Selection:
O - Off
P - Programming Mode Is selected to set the desired IR illuminator Pulse Rate
AL- IR Aim (Low power)
DL- IR Aim (Lower Power On + IR Illuminator on (Low Power) or Strobe(Slow)
AH- IR Aim (High)
DIH- IR Aim(Low) On + IR Illuminator on (High Power) or Strobe (Fast)
DH- IR Aim(High Power) on + IR Illuminator on(High Power) or Strobe (Fast)
Power Switch On instantly Explanation- Single Click interrupted light
Double Click- keep light on rapidly. These Functions are as well as the remote switch pad
Function P Mode Explanation: Turn to P Mode, hold down the fire button. The Green LED Status Indicator will turn on. If press more than 3 sec. the green light will turn to orange light, , blink wice and turn off,
when press the fire button to switch the IR illuminator mode between rapidly on or blinking.
Specification:
Material: Polymer Plastic
Weight: 340g*
Colour: Black
Zero Laser Bin: able to zeroing the laser properly.
Picatinny Rail Size: 20mm
Battery Type: 123a Battery
Size: 120 x 71 x 41mm
IR Illuminator Wave Length: 820nm-850nm
Compatibility: All Night Vision Goggles
Package Contents:
PEQ-15 Device x 1pc
Switch Tail x 1pc
Stickers x 1set
